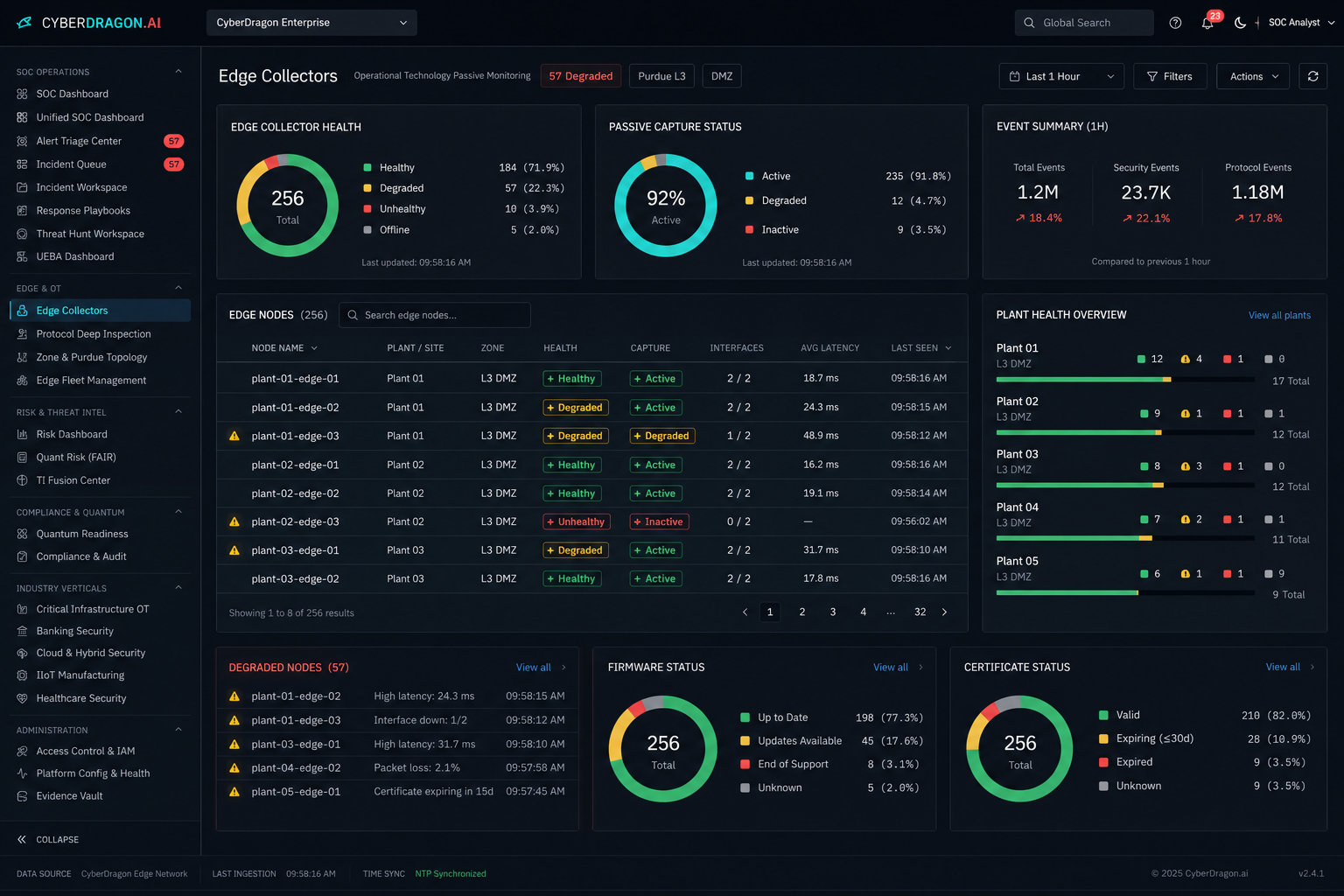

Collectors
Edge node health and capture
- Uptime, last event, interface, and firmware per plant Edge.
- Degraded status is first-class — operators see gaps immediately.
- Passive SPAN/TAP only.
CyberDragon Edge · On-site plane
Plant DMZ collector — Modbus writes without PLC agents.
Distinct Edge experience: orange industrial theme, protocol tables first, appliance profiles, and offline buffer. Not the same layout as Core.
Deploy at IEC 62443 L3
Industrial DMZ. Telemetry up only.
Edge sits at the Enterprise/OT boundary. It reads SPAN / mirror-port traffic. There is no command plane into Purdue L0–L2. If connectivity to Core drops, Edge buffers ~5,000 events in SQLite WAL and forwards when the link returns.
Passive packet capture
SPAN / TAPScapy / libpcap — never injects into OT networks.
Protocol parsers
OT-nativeModbus TCP/RTU, DNP3, OPC-UA, MQTT.
Local detection
Edge AIYAML rules + EWMA/z-score behavior + Purdue zone policy.
Offline buffer
Air-gap safeSQLite WAL, ~5,000-event store-and-forward.
Secure transport
Zero-trustHMAC-SHA256 with optional mTLS to Core.
Fleet identity
Multi-sitePer-node edge_id, scoped to tenant_id.
Local ops dashboard
Plant opsFastAPI dashboard: assets, events, transport health.
Protocols
Modbus TCP/RTU · DNP3 · OPC-UA · MQTT
Protocol-native parsing — not generic PCAP dumps. Plant engineers and SOC analysts see the same session change in OT language.

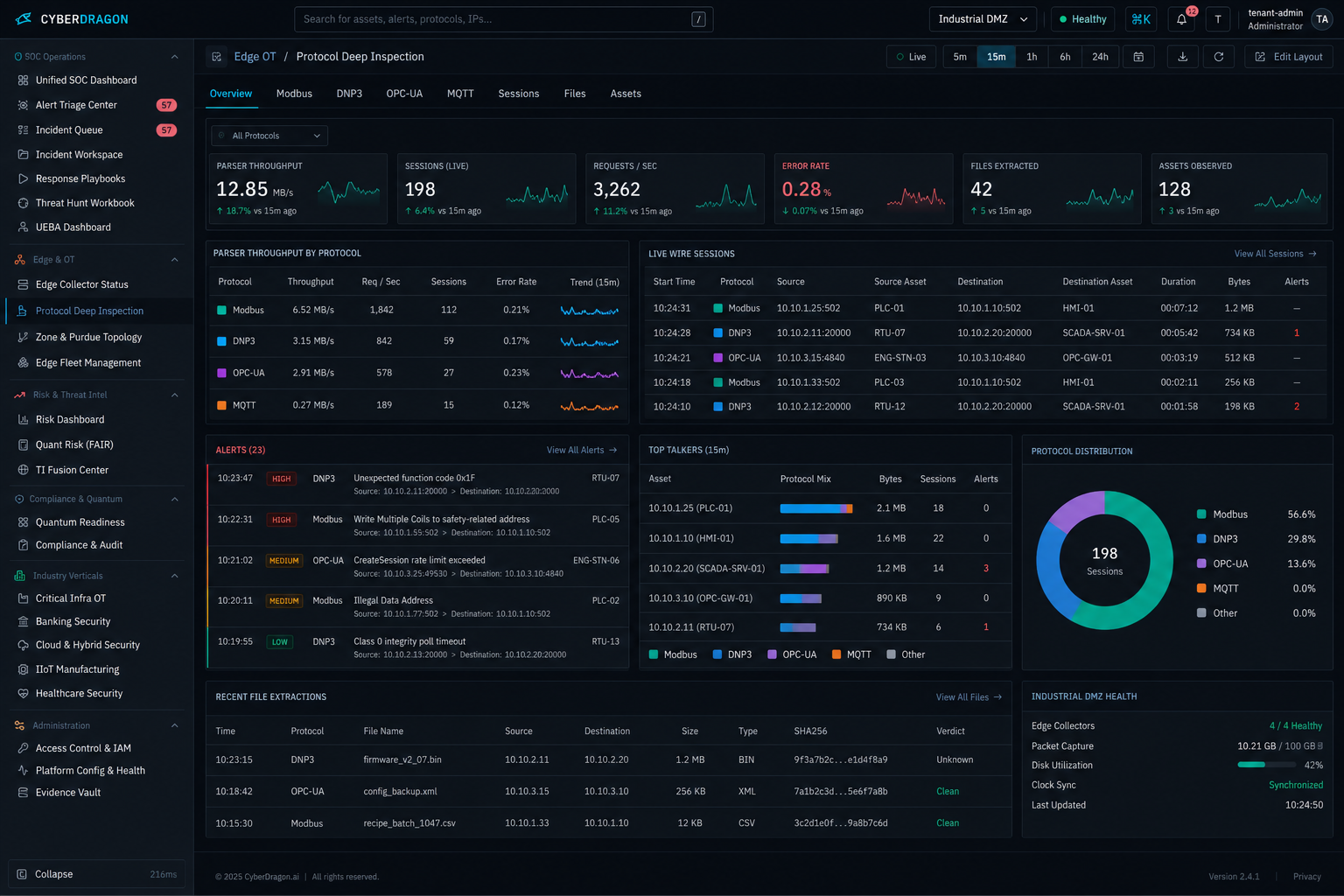

Protocols
Deep inspect Modbus, DNP3, OPC-UA
- Parser throughput per industrial protocol.
- No software on the PLC. No injected packets.
- Feeds Core SIEM with OT semantics, not generic PCAP dumps.
Parser depth
What the collector actually understands on the wire.
| Protocol | Parsed structure | What that enables |
|---|---|---|
| Modbus TCP / RTU | Function codes, unit IDs, register ranges, read vs write intent | Writes to protected registers, function-code sweeps, out-of-window changes |
| DNP3 | Application objects, control relay output blocks, unsolicited responses | Unauthorized control commands and spoofed outstation traffic |
| OPC-UA | Sessions, subscriptions, node browse and read patterns | Tag harvesting, address-space enumeration, session abuse |
| MQTT | Topics, client IDs, subscription scope, publish cadence | Wildcard subscriptions crossing zones and rogue publishers |

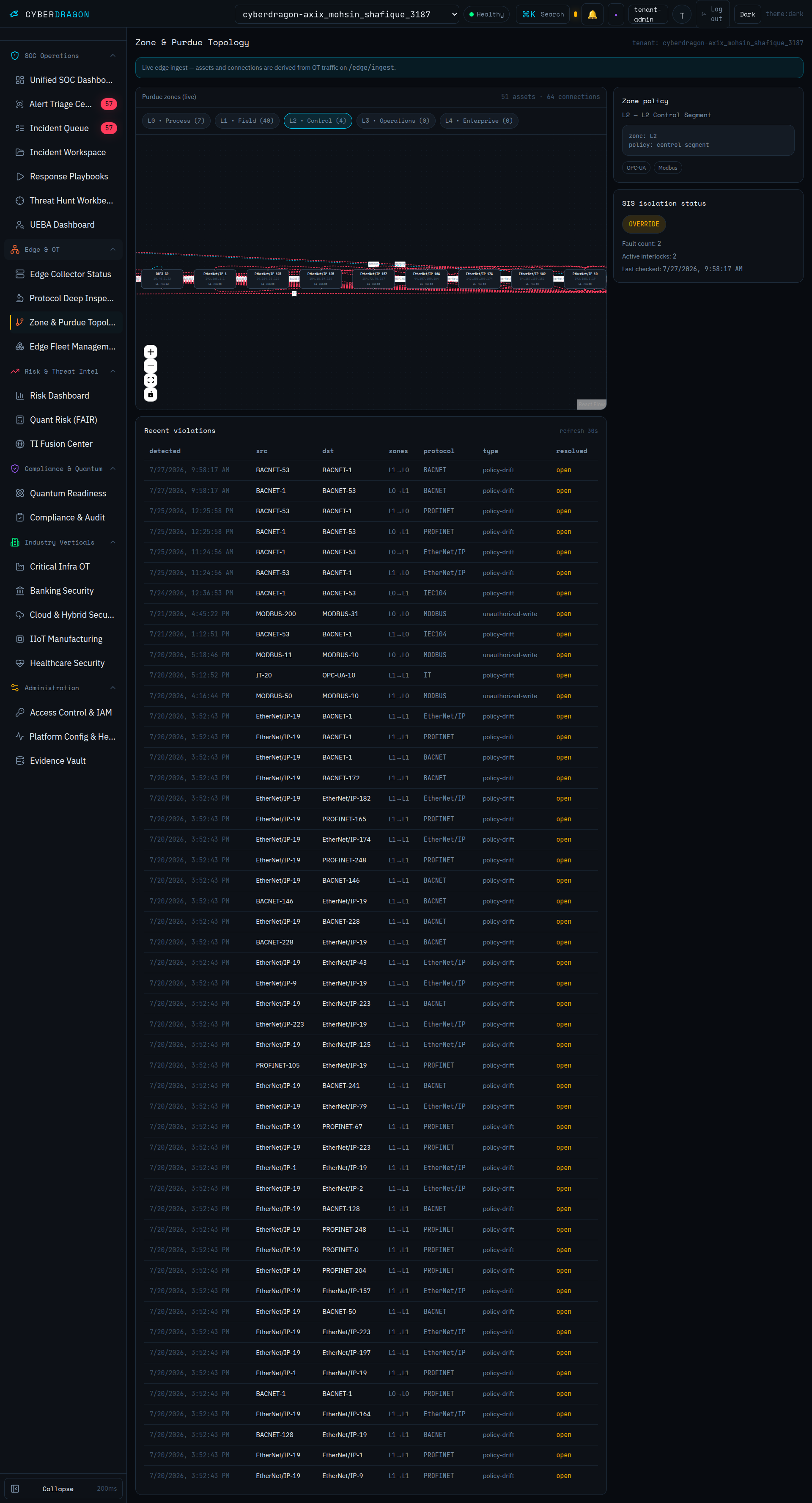

Zones
Purdue L0–L5 topology
- IEC 62443 zone map the SOC and plant engineers can both read.
- Edge sits at L3 / industrial DMZ by design.
- Telemetry up only.
Form factors
Size the collector to the site, not the other way round.

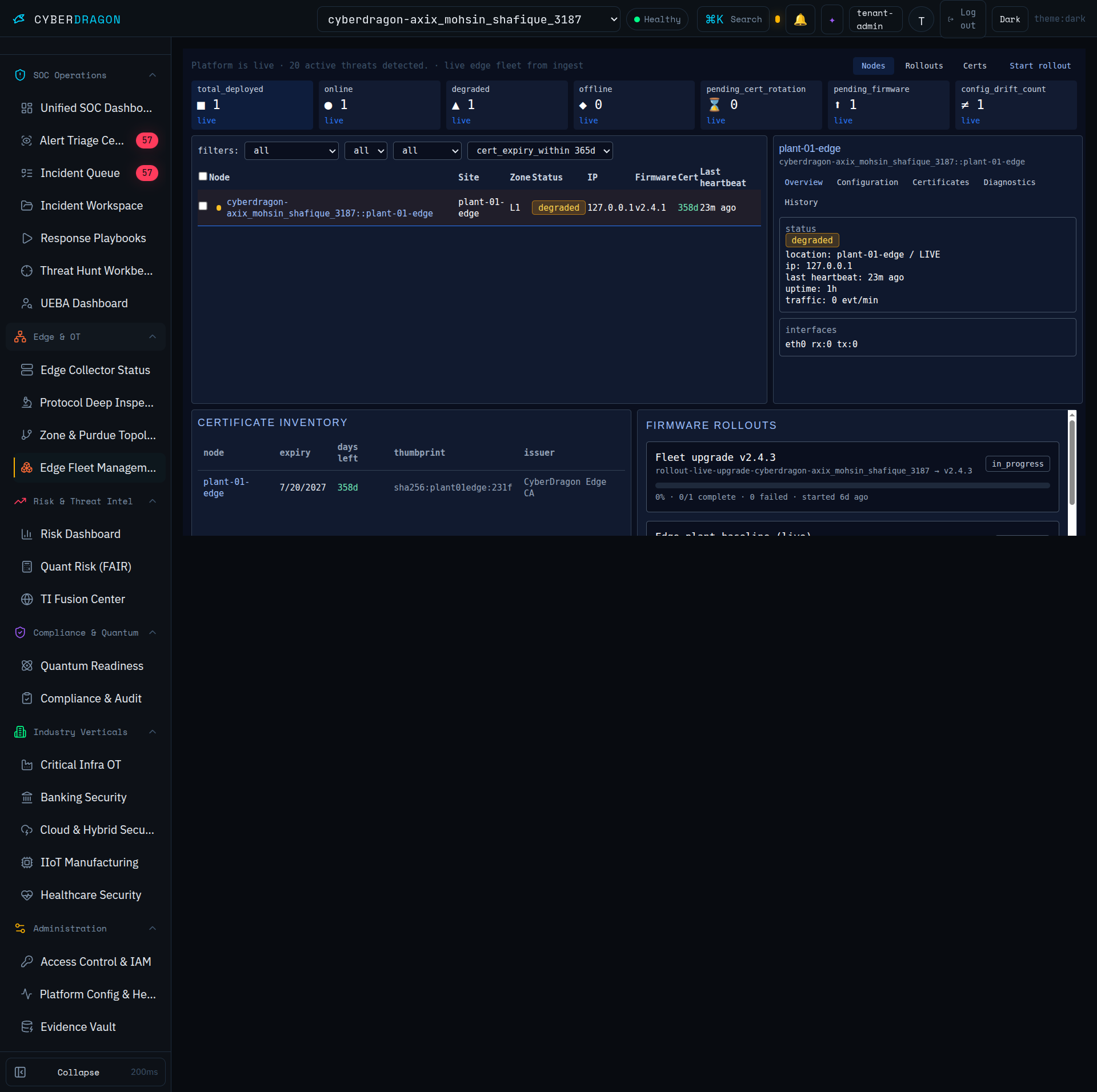

Fleet
Edge fleet management
- Nodes, certs, and rollouts across plants.
- One board for multi-site Industry 4.0 estates.
- Fits hybrid SaaS and sovereign on-prem Core.
Event lifecycle
From mirrored frame to sealed record.
01
Capture
Edge mirrors traffic from a SPAN port or hardware TAP at the industrial DMZ and parses OT protocols locally.
02
Buffer
Events land in a SQLite WAL store-and-forward queue (~5,000 events) so a link outage never loses telemetry.
03
Transport
HMAC-SHA256 signed batches, optionally mTLS, are shipped to Core over the ingest network only.
04
Enrich
Threat-intel fusion adds OTX, Abuse.ch, ThreatFox, MITRE TAXII, and GreyNoise context in flight.
05
Correlate
Cascading W15 / W60 / W24 windows assemble events into kill chains and flag Enterprise→OT pivots explicitly.
06
Decide
Risk scoring, compliance auto-mapping, and Temporal playbooks with human approval and OPA guardrails.
07
Seal
Detections, approvals, and denials are hash-chained and Ed25519-signed into the evidence vault.
FAQ
Frequently asked questions.
Does Edge ever transmit into the OT network?
No. Capture is passive via SPAN or TAP using Scapy/libpcap. Nothing is injected into the process network.
What happens during a network outage?
Roughly 5,000 events buffer locally in SQLite WAL and forward once the secure HMAC (optionally mTLS) transport to Core recovers.
What do plant operators see locally?
A FastAPI dashboard on the collector with asset inventory, security events, and transport health — no cloud dependency to read it.
Add an Edge kit to your PoV.
Start with a 7-day free trial, then extend to a 30-day Proof of Value with on-site collection.
